KUKA 00-168-334 KCP4 smartPAD Teach Pendant for KR C4

KUKA 00-168-334 — KCP4 smartPAD Teach Pendant (KR C4)

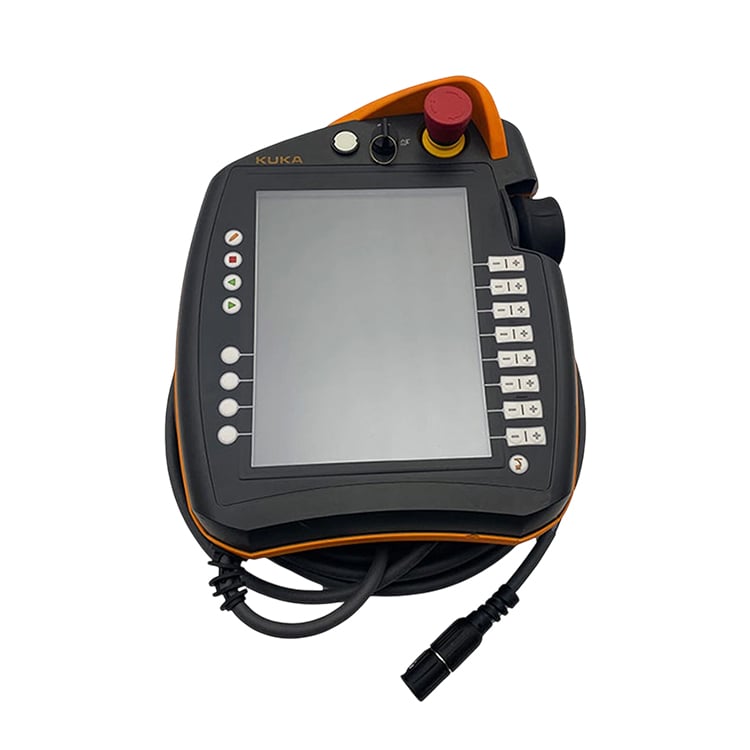

The KUKA 00-168-334 is the KCP4 smartPAD teach pendant (handheld operator unit) for KUKA KR C4 robot controllers. It is the primary interface engineers and technicians use to program, jog, and diagnose robots on the shop floor.

Specifications

Industrial Applications

• Robot programming, jog, and teach-in on KUKA KR C4 cells.
• Production line commissioning, fault finding, and recovery at the robot or controller.
• Routine maintenance and on-site diagnostics for integrators and service teams.
• Manual operation and mode switching (T1 / T2 / AUTO) during setup and testing.
• Used across automotive, electronics, welding, handling, and packaging applications running KR C4.

Design Purpose

The KCP4 smartPAD is the standard human-machine interface for the KUKA KR C4 platform. It combines an 8.4-inch industrial touchscreen with the physical safety controls operators rely on — E-Stop, enabling switch, and mode selector — so robot programming and manual control stay safe and efficient. As the standard operator panel for KR C4 controllers, it is built for daily handheld use on the shop floor.

Common Failure Modes

• Touchscreen loss of response, or cracked / scratched display from shop-floor impact.
• Worn membrane keypad or unresponsive physical buttons after heavy use.
• Failed E-Stop button or enabling (deadman) switch from repeated activation.
• Damaged or frayed teach pendant cable or connector between pendant and controller.
• Mode selector key switch wear affecting T1 / T2 / AUTO switching.

These are the typical issues that lead operators to replace the KCP4 smartPAD or order its spare components.

Why Choose Us

• Genuine KUKA 00-168-334, inspected and function-checked (display, touch, and safety buttons) before dispatch.
• Condition confirmed with you before ordering — new original or used original (Grade A).
• Ships from Shanghai, with a typical lead time of 3-5 working days to most destinations.
• We confirm compatibility against your KR C4 controller / cabinet type before you place an order.
• Flexible sourcing for the pendant with cable and KCP4 spare components.

Related Products

• Other KUKA teach pendants and operator panels: 00-291-556 (KRC5 SmartPAD-2), 00-130-547 (KCP2), 69-000-422 (KRC1 KCP1).
• Same pendant supplied with cable — KUKA 00-168-334 with teach-pendant cable (length confirmed per your setup).
• KUKA KR C4 operator-interface spares: membranes, E-Stop button, enabling switch, display, and mode selector.
