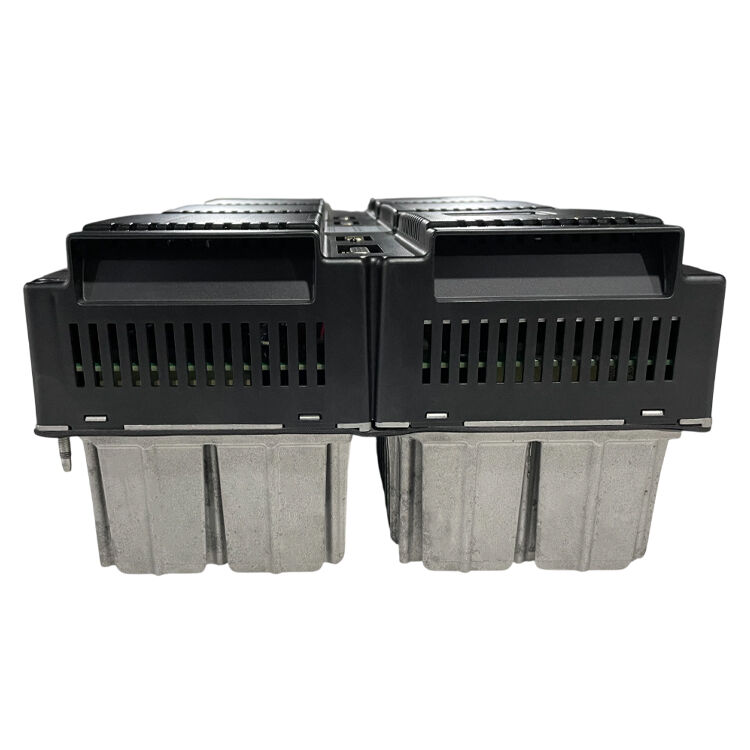

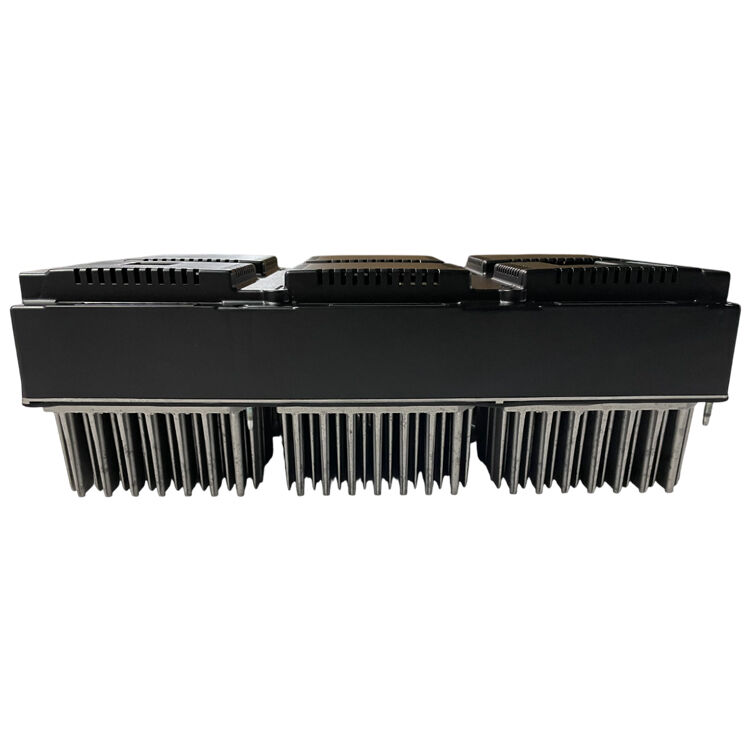

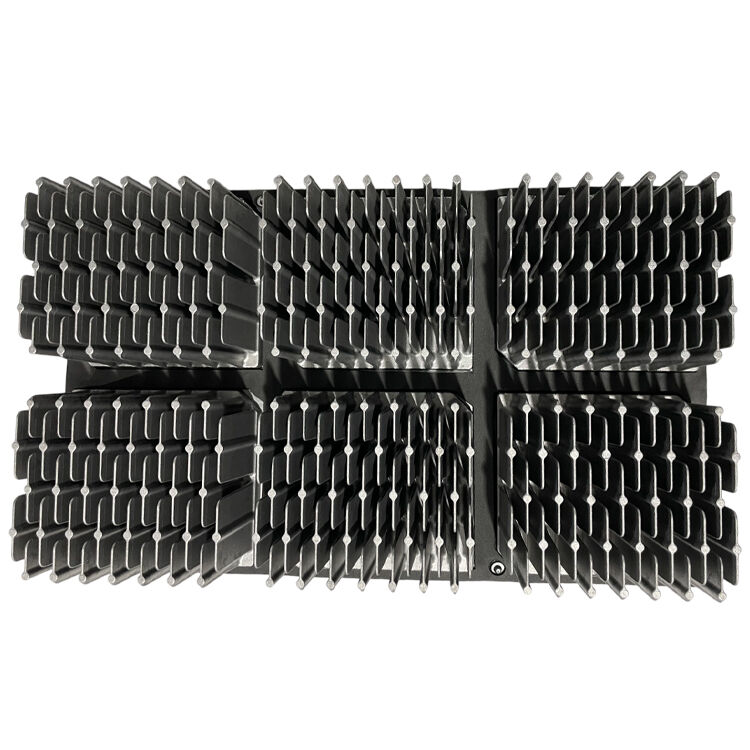

ABB 3HAC025338-006 DSQC617 Main Servo Drive Unit for IRC5

3HAC025338-006 is the ABB main servo drive unit for the IRC5 drive system, catalogued as Main Servo Drive Unit, D6 3W 3V with hardware designation DSQC 617_3V3W. It carries the main-axis power stages of the drive module as one single unit, with drive unit nodes allocated W, V, W, V, W and V across nodes 1 to 6. ABB's IRC5 documentation lists this configuration for IRB 4600, IRB 6600 and IRB 7600 drive modules, where the main drive position set Z4 to X3 is covered by one unit. Send us the article number on your original unit, the robot model and the controller type, and we confirm the match before you order.

Specifications

Part Number 3HAC025338-006
Product Name Main servo drive unit
ABB Catalog Description Main Servo Drive Unit, D6 3W 3V
Hardware Designation DSQC 617_3V3W
Drive Unit Node Allocation Node 1 – Unit Type W; Node 2 – Unit Type V; Node 3 – Unit Type W; Node 4 – Unit Type V; Node 5 – Unit Type W; Node 6 – Unit Type V
Drive Position Main drive unit covers Z4, Y4, X4, Z3, Y3 and X3 as one single unit. ABB's drive system documentation marks this position set with the note "Z4 - X3 is ONE unit!".
Series Compatibility ABB IRC5 drive modules of the Drive System 04 generation, documented for IRB 4600, IRB 6600 and IRB 7600 robot families. Match is confirmed against the article number on your original unit.
Drive Module Companion Parts Capacitor unit 3HAC14551-2 (DSQC 620_C3) or 3HAC14551-3 (DSQC 620_C4), rectifier 3HAC14549-3 (DSQC 618_R3) or 3HAC14549-2 (DSQC 618_R2), and optional drive units for external axes 3HAC14550-4 (DSQC 619, size 1W) sit alongside this unit in the same drive module.
Net Weight / Gross Weight 11.1 kg / 11.1 kg
Customs Tariff Number 85044095
Country of Origin Ireland (IE)
Minimum Order Quantity 1 piece
Service Article ABB identifies E3HAC025338-006 as the replacement product ID for this article. Send us the article number on your original unit and the part type you need, and we quote the matching one.
Condition New original or used original. Please confirm the condition with us before ordering.

ABB lists this article as no longer for sale and points to the E-number as the current replacement, so quote against the number printed on the unit you are removing rather than against the suffix alone.

Industrial Applications

  • Replacing a failed main drive in an IRC5 drive module, where the cell stays down until the unit is exchanged.
  • Automotive body shops, foundries and welding cells running IRB 4600, IRB 6600 or IRB 7600 robots on multi-shift production.
  • Metal processing, material handling, machine tending and general automation cells where a main drive fault stops every axis.
  • Planned spares for critical cells: the main drive is one of the highest-consequence parts to hold on the shelf.
  • Cabinet refurbishment and drive-system exchange programmes, where drives are swapped as a set with the rectifier, capacitor unit and single drive units.

Design Purpose

  • Act as the power stage of the motion control system, converting controller commands into drive current for the robot's axis motors.
  • Regulate speed, torque and position from encoder feedback, so axis motion follows the programmed path.
  • Carry the main-axis drive nodes in one unit, so a single module covers the whole main-axis position set instead of several separate units.
  • Be exchangeable at module level, so a cabinet returns to production without the drive system being rebuilt.

Common Failure Modes

  • Drive unit start-up error – the internal logic does not initialise and the controller will not bring the system to motors-on.
  • Drive unit temperature warning, from failed cabinet fans, blocked airflow or aged components. Troubleshooting:ABB IRC5 drive unit alarm guide
  • Overcurrent or short-circuit shutdown in the power stage, which stops the affected axes.
  • Axis not responding – the controller powers up but one or more axes will not move.
  • Communication loss between the controller and the drive unit.
  • Missing or failed incoming mains or bleeder circuit, reported by the controller as a power fault.
  • Wrong suffix fitted – the suffixes in this series carry different stage allocations and are not interchangeable.

Why Choose Us

  • Identity checked against ABB's IRC5 drive system configuration and the DSQC 617_3V3W stage allocation, not against a reseller description.
  • Suffix and article number confirmed before we quote, so the unit you receive matches the configuration in your cabinet.
  • We can quote the capacitor unit, rectifier and single drive units from the same drive module together with this main drive.
  • New original or used original; we confirm the condition with you before you order.
  • Carefully packed and shipped worldwide from Shanghai, China via DHL / FedEx / UPS.

Related Products

  • 3HAC025338-004 – main servo drive unit in the DSQC 617_3G3T configuration, for IRB 4400 and IRB 6400RF drive modules. A different unit with a different stage allocation; not interchangeable with -006.
  • 3HAC025338-003 – main servo drive unit in the DSQC 617_3E1C configuration, for IRB 340 and IRB 360 drive modules. A different unit; confirm your configuration before ordering.
  • 3HAC029818-001 – DSQC 663 main drive unit for IRC5 controllers, a different drive-system module. Verify against your cabinet.
  • 3HAC030923-001 – DSQC 664 additional drive unit, used where the robot has extra axes.
  • 3HAC026525-001 – cabinet cooling fan. A main drive that overheats again is usually a cooling fault, so it is worth checking the fans in the same visit.

Request a quote for current pricing and lead time – send us the article number on your original unit, the robot model and the controller type, and we confirm the match before you order.
